110V/220V washing machine motor/mini washing machine motor

Model: XTD50-180/XTD90/XTD120/AC motor
Place of Origin: Zhejiang,China (Mainland)
Structure: Asynchronous Motor
Shape: Others
Phase: Single-phase
Protect Feature: Enclosed
Speed: Variable Speed
Function: Driving
Usage: Household Appliance
Brand Name: SINO MOTORS
washing machine motor/dewatering machine motor: household appliance
platen washing machine motor/series wound motor: household appliances
spinning motor/fully automatic washing machine motor: household appliances
single-phase asynchronous motor/three-phase asynchronous motor frequency conversion/AC motor: household appliances
AC motor: household appliance

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:8.0~15.0 USDProduction Capacity:20000pcs/month
Payment Terms:L/C, D/P, D/A, T/T, WUPacking:paper cartons
Min. Order:100 Piece/PiecesDelivery Date:25 days
Means of Transport:Ocean, Air, Land

Product: 110V/220V washing machine motor/mini washing machine motor
110V/220V washing machine motor/mini washing machine motor110V/220V washing machine motor/mini washing machine motor

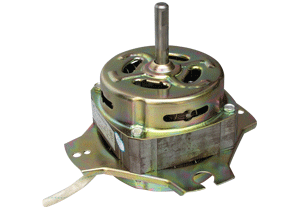

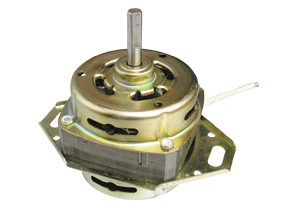

This is the picture of 110V/220V washing machine motor/mini washing machine motor

Below is the performance of 110V/220V washing machine motor/mini washing machine motor

Model

Rated voltage
(V)

Rated frequency
(Hz)

Rated spdeed of rotation
(r/min)

Rated power output(W)

Rated current
(A)

Capacity
μf/450V

Noise≤ab

(/A)

XTD-50

220/110

50/60

1350/1600

50

0.7/1.4

4/16

45

XTD-60

220/110

50/60

1350/1600

60

0.7/1.4

5/20

45

XTD-90

220/110

50/60

1350/1600

90

0.9/1.8

8/32

45

XTD-120

220/110

50/60

1350/1600

120

1/2

10/40

45

XTD-135

220/110

50/60

1350/1600

135

1.2/2.4

12/48

45

XTD-150

220/110

50/60

1350/1600

150

1.3/2.6

12/48

45

XTD-180

220/110

50/60

1350/1600

180

1.6/3.2

12/48

45

.

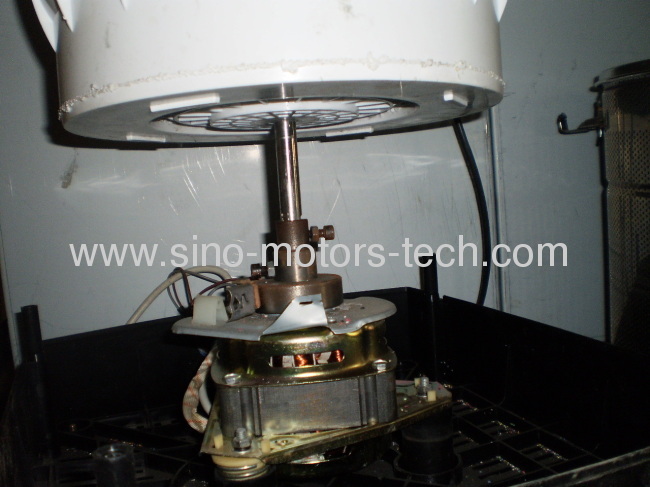

The picture of the motor which was installed in the washing machine


NOTE: 1 Working voltages and frequencies can be made as per user requirements.
             2 Colour and length of conductingire can be made according to the requiremnt of users.
             3 The output shaft can be made according to the consumers need.
110V/220V washing machine motor/mini washing machine motor

Category: Washing Machine Motor
