12V/24V PMDC GEARED MOTORS/Permanent Magnet with Planetary Gears

Model: 25-PA/28-PA/36PA
Place of Origin: Zhejiang,China (Mainland)
Structure: Others
Shape: Tubular
Phase: Single-phase
Protect Feature: Enclosed
Speed: Variable Speed
Function: Driving
Usage: Universal
Brand Name: SINO MOTORS
PMDC planet gear motor: auto shutter/pan or Tilt camera
DC motor: slot machine/towel dispensers
planetary gear box motor: money detector/coin refund devices
DC gear motor series: automatic doors/office equipment
DC planetary geared motor: currency count machine/automatic
DC brushless gear motor: automatic TV rack
reduction gear motor: precise instrument
wiper motor: car

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:10.0~15.0 USDProduction Capacity:10000
Trade Term:FOBPacking:paper cartons
Payment Terms:L/C, D/P, D/A, T/T, WUDelivery Date:25 days
Min. Order:100 Piece/Pieces
Means of Transport:Ocean, Air, Land







Main voltage:3VDC,6VDC,9VDC,12VDC,24VDC
Typical applications: Auto shutter,Money detector,Binding machine,Automatic TV rack,Packing bank note machine,Limelight,Tissue machine,Office equipment,Household appliances,Automatic actuator.

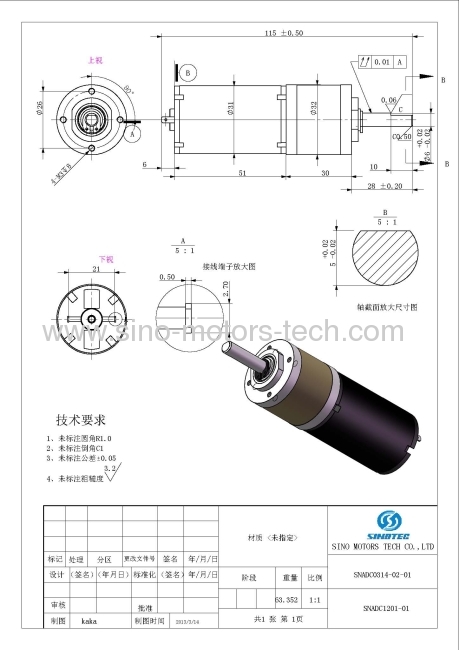

Our drawing of 12V/24V PMDC GEARED MOTORS
12V/24V PMDC GEARED MOTORS

Insulation class Class B 130 C
Insulation resistance 100MΩminimum under normal temperature and humidity, when measured by a 500VDC megger between the motor coils and casing
Insulation voltage Sufficient to withstand 1.0kv, 60Hz applied between the motor coils and casing for 1 minute, under normal temperature and humidity
Temperature Ambient temperature - 10C ~ + 50C
Ambient Humidity 85% or less
Gas medium No corrosive gas and dust, can not directly contact water and oils(expect special airproof motor)
Temperature rise Resistance Method is 80 oC or less (at standstill, two phase energized)
Shaft Runout 0.05mm(T. I. R) at top of output shaft
Axial Play 0.025mm Max. Of 1.12 1b. (5N)
Redial Play 0.075mm Max. Of 2.2 1b. (10N)
