12VDC/220VAC Brusheless DC ceiling fan/ Emergency ceiling fan/ Rechargeable ceiling fans

Model: SMT220-12
Place of Origin: Zhejiang,China (Mainland)
Structure: Asynchronous Motor
Shape: Others
Phase: Single-phase
Protect Feature: Enclosed
Speed: Variable Speed
Function: Driving
Usage: Fan
Brand Name: SINO MOTORS

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:40.0~45.0 USDProduction Capacity:10000PCS/MONTH
Payment Terms:L/C, D/P, T/T, WUPacking:paper Cartons
Min. Order:100 Piece/PiecesDelivery Date:25days after advanced...
Means of Transport:Ocean


Below is the product of 12VDC/220VAC Brusheless DC ceiling fan/ Emergency ceiling fan/ Rechargeable ceiling fans

12VDC/220VAC Brusheless DC ceiling fan/ Emergency ceiling fan/ Rechargeable ceiling fans

This is the picture of 12VDC/220VAC Brusheless DC ceiling fan/ Emergency ceiling fan/ Rechargeable ceiling fans/ Solar ceiling fan and its control box.

Specification:

Voltage: 12V/24VDC or 90-260VAC(50/60Hz)
Power: less than 28W
Speed: 300rpm
Speed control:3speeds can be adjusted
Switch type:step switch
Motor Type: brushless DC motor

Easy for using:

(1) Connect to 12V power:

     1.12V solar battery of power interface;

     2.12V emergency light battery of power interface;

     3.Car of 12V power interface.

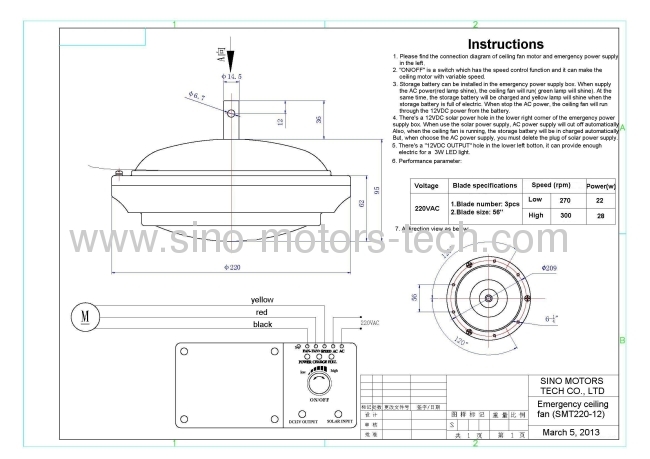

Below is the drawing of 12VDC/220VAC Brusheless DC ceiling fan/ Emergency ceiling fan/ Rechargeable ceiling fans/ Solar ceiling fan and its control box.

12VDC/220VAC Brusheless DC ceiling fan/ Emergency ceiling fan/ Rechargeable ceiling fans

Please read the detailed specification refer to the above drawing.

1. Please find the connection digram of ceiling fan motor and emergency power supply in the left.

2."ON/OFF" is a switch which has the speed control function and it can make the ceiling motor with variable speed.

3.Storage battery can be installed in the emergency power supply box. When supply the AC power(red lamp shine), the ceiling fan will runc( green lamp will shine ). At the same time, the storage battery will be charged and yellow lamp will shine when the storage battery is full of electric. When stop the AC power, the ceiling fan will run through the 12VDC power from the battery.

4. There's a 12VDC solar power hole in the lower right corner of the emergency power supply box. When use the solar power supply, AC power supply will cut off automatically. Also, when the ceiling fan is running, the storage battery will be in charged automatically. But, when choose the AC power supply, you must delete the plug of solar power supply.

5. There's a "12VDC OUTPUT" hole in the lower left botton, it can provide enough electric for a 3W LED light.

6. Performance parameter
12VDC/220VAC Brusheless DC ceiling fan/ Emergency ceiling fan/ Rechargeable ceiling fans

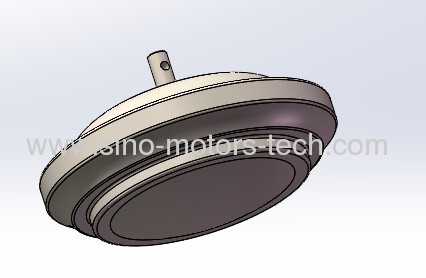

Below is the 3D drawing picture of 12VDC/220VAC Brusheless DC ceiling fan/ Emergency ceiling fan/ Rechargeable ceiling fans:

12VDC/220VAC Brusheless DC ceiling fan/ Emergency ceiling fan/ Rechargeable ceiling fans

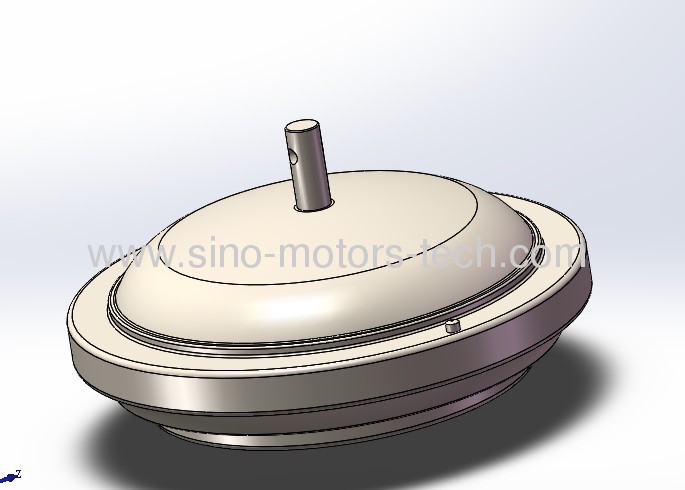

The is the 3D drawing of 12VDC/220VAC Brusheless DC ceiling fan/ Emergency ceiling fan/ Rechargeable ceiling fans/ Solar ceiling fan
12VDC/220VAC Brusheless DC ceiling fan/ Emergency ceiling fan/ Rechargeable ceiling fans

Brushless DC ceiling fan is a variable speed or multiple files can be energy-efficient ceiling fan speed control products, than the regular AC motor ceiling fans and energy-saving 45% ~ 50%. The ceiling fan can be DC power (12V, 24VDC) power supply, but also AC power (120V/60Hz or 220V/50Hz) power supply, he has a small size, light weight, low noise.
