37mm BLDC Gear Motor with Encoder

Model: PMG37/PMG45/PMG57
Place of Origin: Zhejiang,China (Mainland)
Structure: Asynchronous Motor
Shape: Tubular
Phase: Single-phase
Protect Feature: Enclosed
Speed: Variable Speed
Function: Driving
Usage: Universal
Brand Name: SINO MOTORS
DC brushless gear motor: currency count machine/automatic
DC planetary geared motor: automatic TV rack
DC motor: household appliances
planetary gear box motor: money detector/coin refund devices
DC gear box series: auto shutter/pan or Tilt camera

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:10.0~30.0 USDProduction Capacity:10000
Trade Term:FOBPacking:paper cartons
Payment Terms:L/C, D/P, D/A, T/T, WUDelivery Date:25 days
Min. Order:100 Piece/Pieces
Means of Transport:Ocean, Air, Land

This is the product of 37mm BLDC Gear Motor with Encoder

37mm BLDC Gear Motor with Encoder

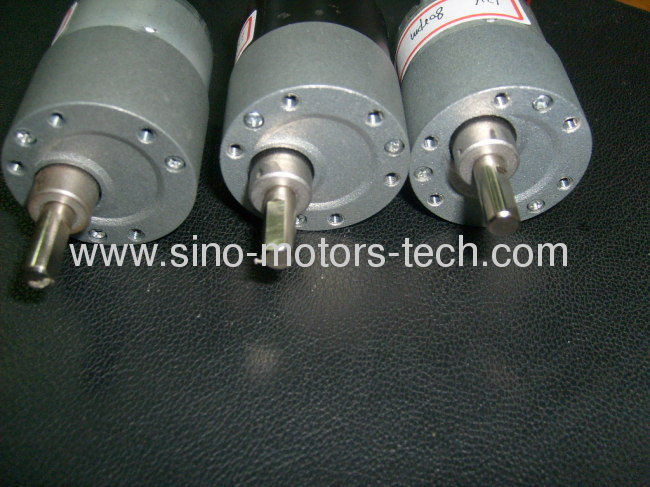

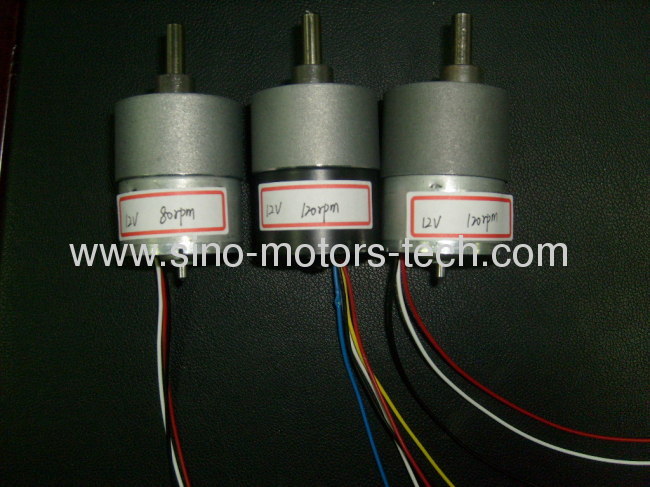

This is the picture of 37mm BLDC Gear Motor with Encoder.


Specifications

37mm dc gear motor:
1.Rated Voltage:3-24V
2.Speed: 3-1500RPM
3.Stall Torque: 50kg.cm
4.Reliable performance,Large torque

37mm dc gear motor,Can be equipped with encoder

1.Widely used in

=====robot,lock. Auto shutter, USB fan,Slot machine,Money detector,

=====Coin refund devices,Currency count machine, Towel dispensers,

=====Automai\tic doors,Peritoneal machine,Automatic TV rack,

=====Office equipemt ,Household appliances,Automatic

2.Voltage:3-24V 3.Speed:3-1500RPM

4.Stall Torque: 50kg.cm

5.Low noise,low current no spark

6.Motor with encoder,16 pulse signal

7.Reduction Ratio:3-1000

8.size:37*60 mm,just 60.0 mm length mini motor

9.We can offer the samples first ,the MOQ is 100 pieces ,the delivery time is 15-20 days.

10. 6v dc gear motor,12v dc gear motor,24v dc gear motor,37mm gear motor

MODEL

VOLTAGE

NO LOAD

AT LOAD

STALL

OPERATING RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

OUTPUT

TORQUE

CURRENT

V

rpm

A

rpm

A

N.m

Kg.cm

w

N.m

Kg.cm

A

GM37-3530

0650-106-1512.04900.124300.220.020.240.650.11.21.9
0650-306-1512.01600.121470.220.060.630.650.33.21.9
0650-906-1512.0550.12470.220.161.60.650.88.01.9
0650-1696-1512.0290.12250.220.282.80.651.413.91.9
0650-2706-1512.0180.12160.220.454.50.653.0301.9
0650-5066-1512.09.50.1480.220.595.90.653.0301.9
0650-8105-1512.060.1450.220.757.50.653.0301.9
12100-106-1512.09700.259300.40.020.242.90.242.45.5
12100-306-1512.03300.25310040.060.632.90.636.35.5
12100-906-1512.01100.251030.40.161.62.91.6165.5
12100-1696-1512.0590.25550.40.282.82.92.9295.5
12100-2706-1512.0370.25350.40.454.52.93.0305.5
12100-5066-1512.0200.25180.40.595.92.93.0305.5
12100-8106-1512.0120.25110.40.757.52.93.0305.5


37mm BLDC Gear Motor with Encoder

37mm BLDC Gear Motor with Encoder

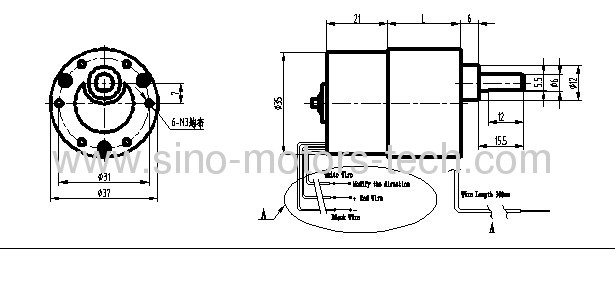

Below is the drawing.

37mm BLDC Gear Motor with Encoder
