AC Synchronous Motors/49TYJ motor/fan motor

Model: 49TYJ/YSZ49/50TYZ/60TYZ
Place of Origin: Zhejiang,China (Mainland)
Structure: Synchronous Motor
Shape: Others
Phase: Single-phase
Protect Feature: Enclosed
Speed: Low Speed
Function: Driving
Usage: Electric Tool
Brand Name: SINO MOTORS
Synchronous motor/fan motor: household appliances
heater motor/49TYJ motor: fan heater/warm air blower
permanent magnet synchronous motor: electric fan
AC synchronous motor: air-cooler
fan motor/ventilator motor: rotating equipment
brushless AC electric motor: machinery equipment
49TYJ synchronous motor: household appliances
cooling fan motor/heater motor/49TYJ motor: household appliance

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:0.3~0.5 USDProduction Capacity:200000pcs/month
Payment Terms:L/C, D/P, D/A, T/T, WUPacking:paper carton
Min. Order:1000 Piece/PiecesDelivery Date:25 days
Means of Transport:Ocean, Air, Land

Product: 3-4 RPM Synchronous Motors
3-4 RPM Synchronous Motors

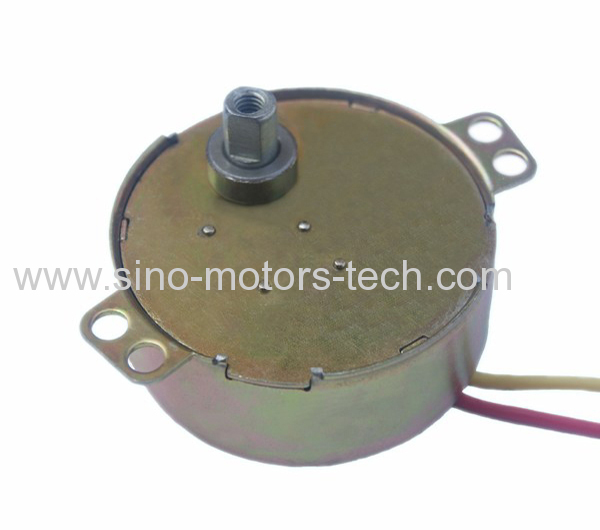

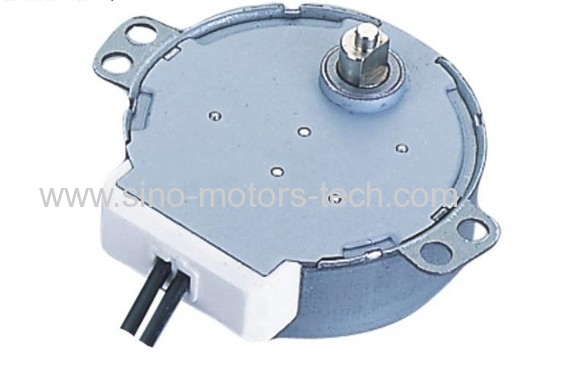

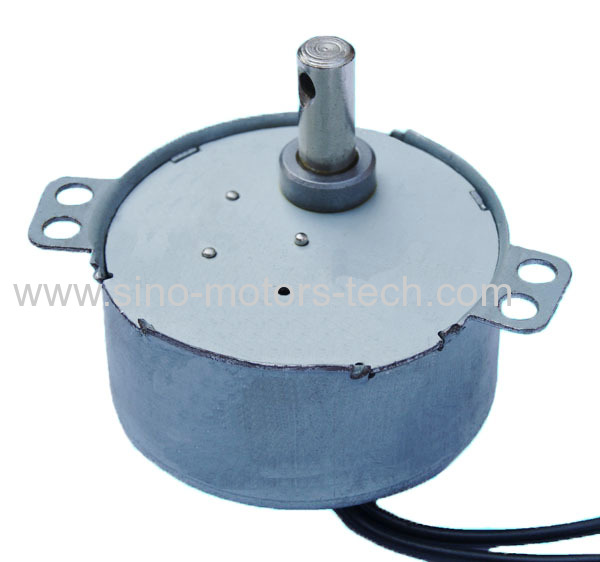

This is the picture of 3-4 RPM Synchronous Motors

Below is detail information of 3-4 RPM Synchronous Motors

model

Voltage

HZ

RPM


kgf.cm


K

VAC/S



49TYJ-B

AC12-240

50/60

2.5


≥8


≤60

1500

≥100

CW/CCW

49TYJ-B

AC12-240

50/60

3


≥7


≤60

1500

≥100

CW/CCW

49TYJ-B

AC12-240

50/60

4


≥6


≤60

1500

≥100

CW/CCW

49TYJ-B

AC12-240

50/60

5-6


≥5


≤60

1500

≥100

CW/CCW

49TYJ-B

AC12-240

50/60

8


≥4


≤60

1500

≥100

CW/CCW

49TYJ-B

AC12-240

50/60

12


≥2.5


≤60

1500

≥100

CW/CCW

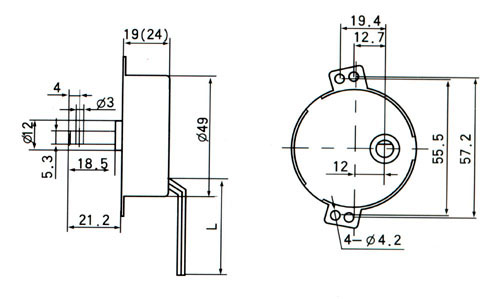

Below is drawing of 3-4 RPM Synchronous Motors


NOTE: 1 Working voltages and frequencies can be made as per user requirements.
             2 Colour and length of conductingire can be made according to the requiremnt of users.
            3 The output shaft can be made according to the consumers need.
