Motor for mini washing machine

Model: SNM226
Place of Origin: Zhejiang,China (Mainland)
Structure: Asynchronous Motor
Shape: Tubular
Phase: Single-phase
Protect Feature: Enclosed
Speed: Variable Speed
Function: Driving
Usage: Household Appliance
Brand Name: SINO MOTORS
washing machine motor/dewatering machine motor: household appliance
platen washing machine motor/series wound motor: household appliances
spinning motor/fully automatic washing machine motor: household appliance
single-phase asynchronous motor/three-phase asynchronous motor frequency conversion: household appliances
AC motor: ho

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:8.0~15.0 USDProduction Capacity:20000pcs/month
Payment Terms:L/C, D/P, D/A, T/T, WUPacking:paper cartons
Min. Order:100 Piece/PiecesDelivery Date:25 days
Means of Transport:Ocean, Air

Product: Motor for mini washing machine
Motor for mini washing machine
This is the picture of Motor for mini washing machine

Rated power: From 25W to 90W
Rated voltage: 220V-240V or 110V
Rated frequency: 50Hz /60Hz
Rated current: 0.46A-0.92A (220V-240V)
0.92A-1.95A(110V)

Capacitor: From 3uf to 7uF(220v-240V)

From 10uF to 45uF(110V)
Insulated Class: E
Class: 4P
Noise: Less than 50dB
Work type: S2/15 minutes

ModelRated voltage(v)Rated frequency(Hz)Rated power input(W)Rated current(A)Rated speed of rotation(RPM)Electric capacitynoise≤dB(/A)
XDT-5022050500.61350445
XDT-135220501351.2513701045
XDT-180220501801.1013701045
XDT-6022050600.751370545
XDT-4522050450.651370445

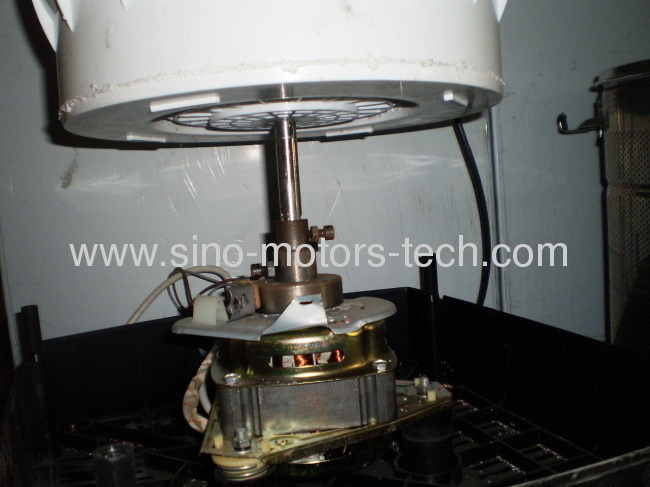

The picture of the motor which was installed in the washing machine

Motor for mini washing machine

Category: Washing Machine Motor
