washing machine motor with ball bearings

Model: XTD50-180/XTD90/XTD120
Place of Origin: Zhejiang,China (Mainland)
Structure: Others
Shape: Others
Phase: Single-phase
Protect Feature: Enclosed
Speed: Variable Speed
Function: Driving
Usage: Household Appliance
Brand Name: SINO MOTORS
washing machine motor/dewatering machine motor: household appliance
platen washing machine motor/series wound motor: household appliances
spinning motor/fully automatic washing machine motor: household appliances
single-phase asynchronous motor/three-phase asynchronous motor frequency conversion: household appliances
AC motor: household appliances

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:8.0~15.0 USDProduction Capacity:10000pcs/month
Payment Terms:L/C, D/P, D/A, T/T, WUPacking:paper cartons
Min. Order:100 Piece/PiecesDelivery Date:25 days
Means of Transport:Ocean, Air, Land

NOTE: 1 Working voltages and frequencies can be made as per user requirements.
            2 Colour and length of conductingire can be made according to the requiremnt of users.
            3 The output shaft can be made according to the consumers need.


Product: washing machine motors with ball bearings

washing machine motor with ball bearingsThis is the pirture of washing machine motors with ball bearings

Below is the detail performance of washing machine motors with ball bearings

Model

Rated voltage
(V)

Rated frequency
(Hz)

Rated spdeed of rotation
(r/min)

Rated power output(W)

Rated current
(A)

Capacity
μf/450V

Noise≤ab

(/A)

XTD-50

220/110

50/60

1350/1600

50

0.7/1.4

4/16

45

XTD-60

220/110

50/60

1350/1600

60

0.7/1.4

5/20

45

XTD-90

220/110

50/60

1350/1600

90

0.9/1.8

8/32

45

XTD-120

220/110

50/60

1350/1600

120

1/2

10/40

45

XTD-135

220/110

50/60

1350/1600

135

1.2/2.4

12/48

45

XTD-150

220/110

50/60

1350/1600

150

1.3/2.6

12/48

45

XTD-180

220/110

50/60

1350/1600

180

1.6/3.2

12/48

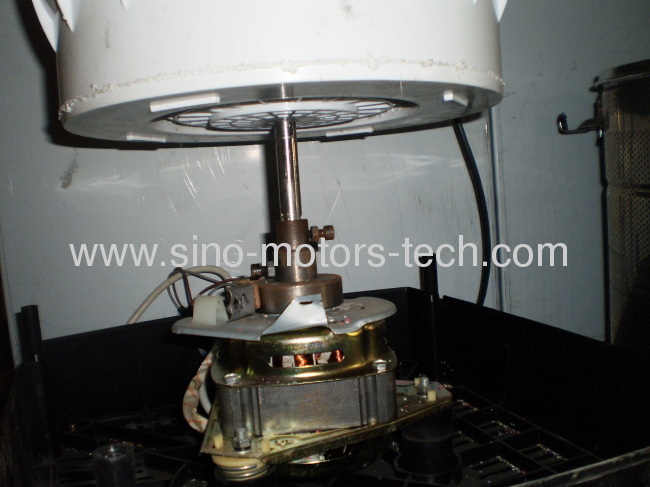

The picture of the motor which was installed in the washing machine

washing machine motor with ball bearings
